NE200
Product name:NE200
AUTOMATIC EDGE BANDING MACHINE NE200.docx

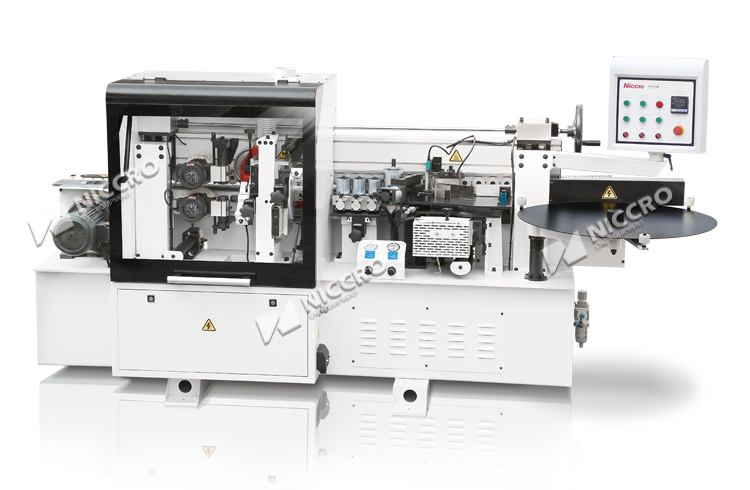

NICCRO AUTOMATIC EDGE BANDING MACHINE
MODEL：NE200
SPECIFICATION
| EDGE TAPE THICKNESS | 0.4 - 3 mm |
| WORKPIECE THICKNESS | 10 - 60 mm |
| CONVEYOR SPEED | 12/16/20 m/min |
| Min.WORKPIECE WIDETH | 60 mm |
| Min.WORKPIECE LENGTH | 100 mm |
| TOTAL POWER | 7.3kw |
| VOLTAGE | 380V/50Hz/3Phase |
| COMPRESSED AIR PRESSURE | 6.0 bar |
| TOTAL WEIGHT | 1150kg |
| OVERALL SIZE(L*W*H) | 2910x 1000 x 1600 mm |

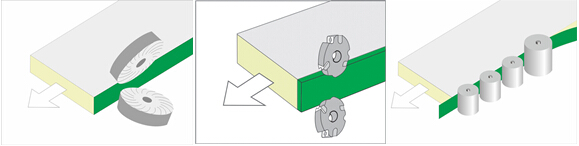

FOUNCRIONS
